Projects
Phone Stand

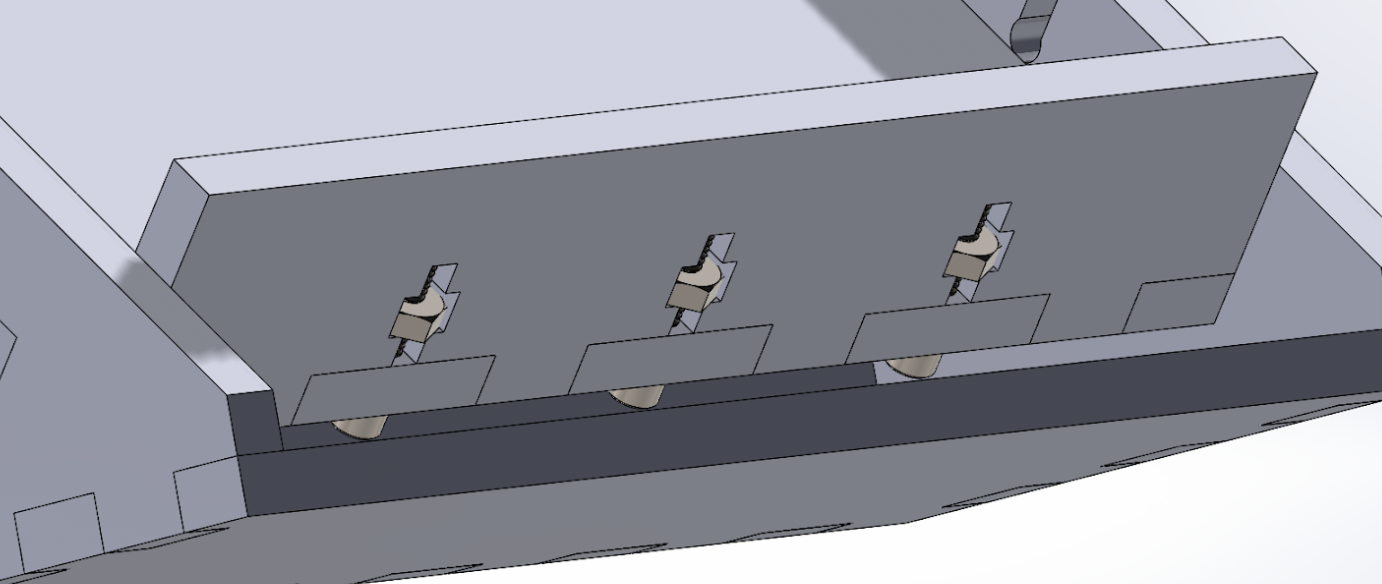

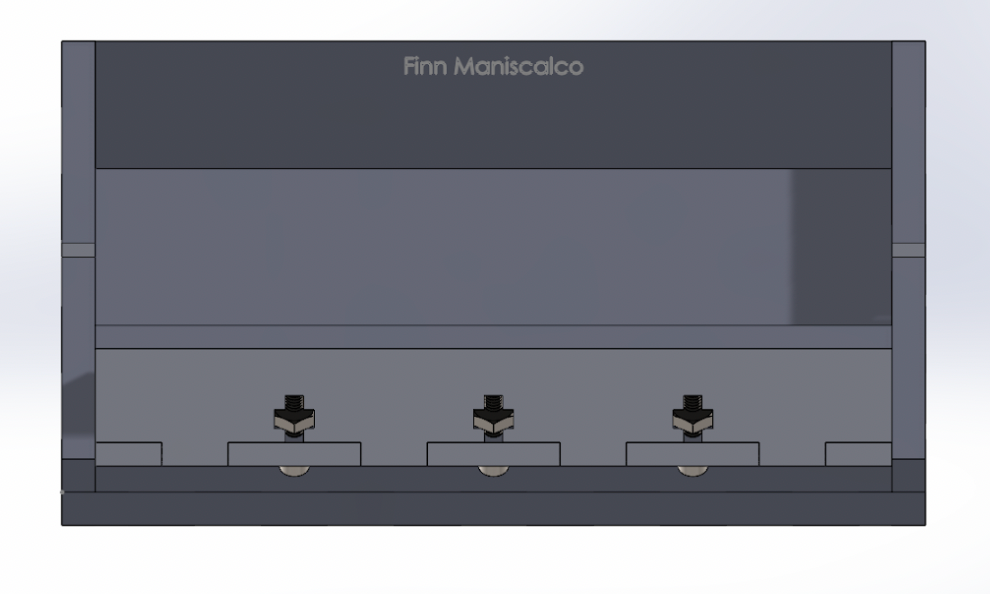

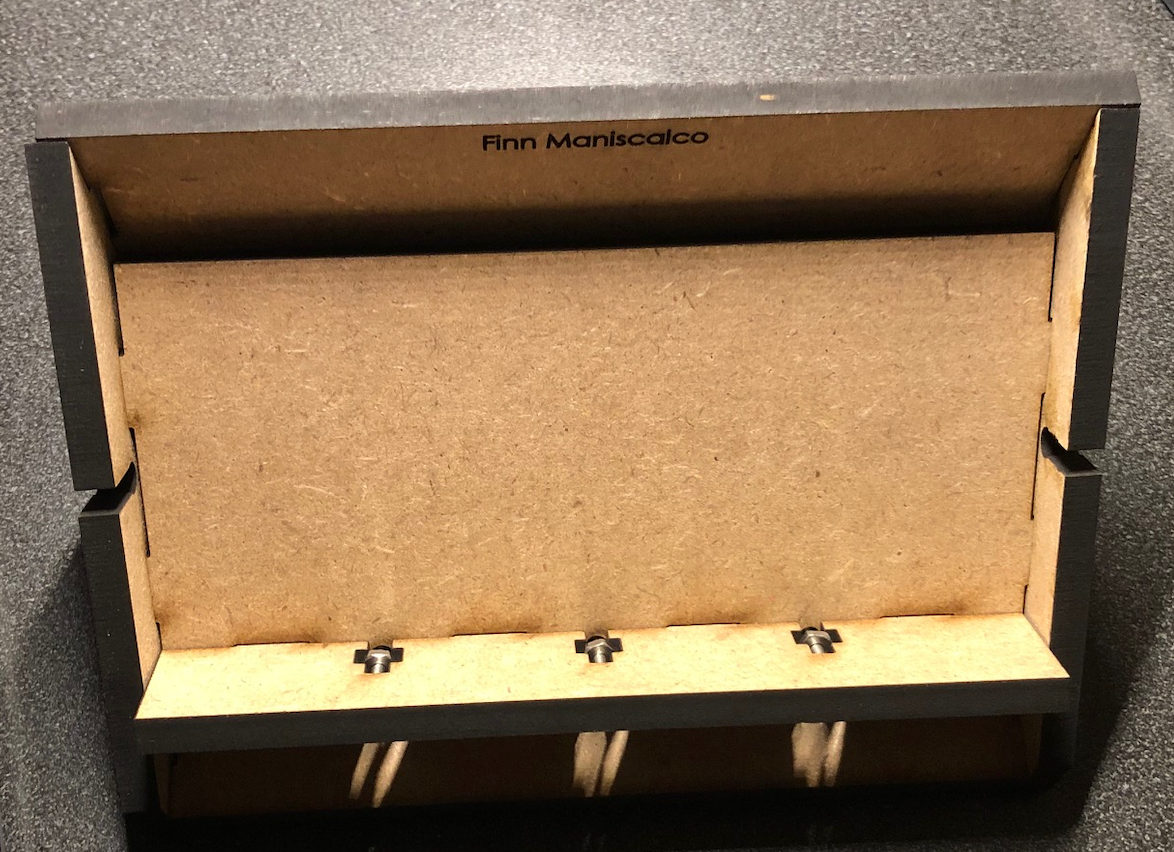

This project tested our ability to utilize different fits in creating some object to act as a holder for a device or tool. I decided to make a phone stand, focusing on press fits and corner joints. I also decided to include slits on either wall to allow for easy charging access if needed. I designed this on SolidWorks and manufactured this with laser-cut MDF via DraftSight.
Fidget Spinner

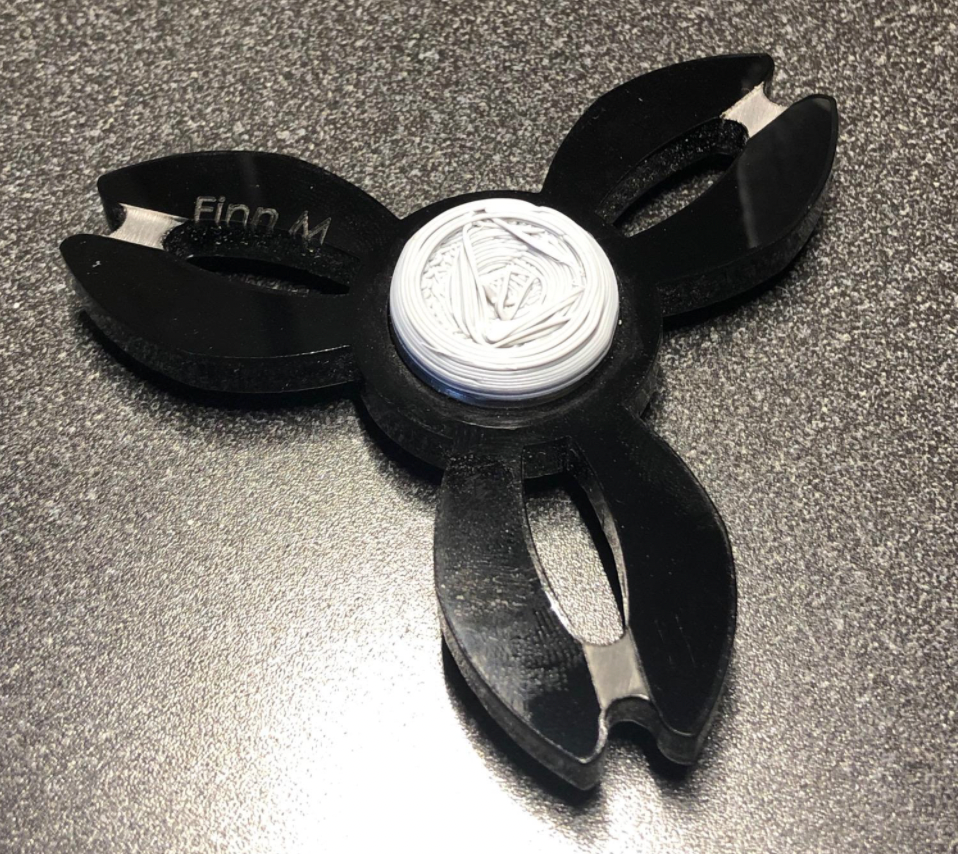

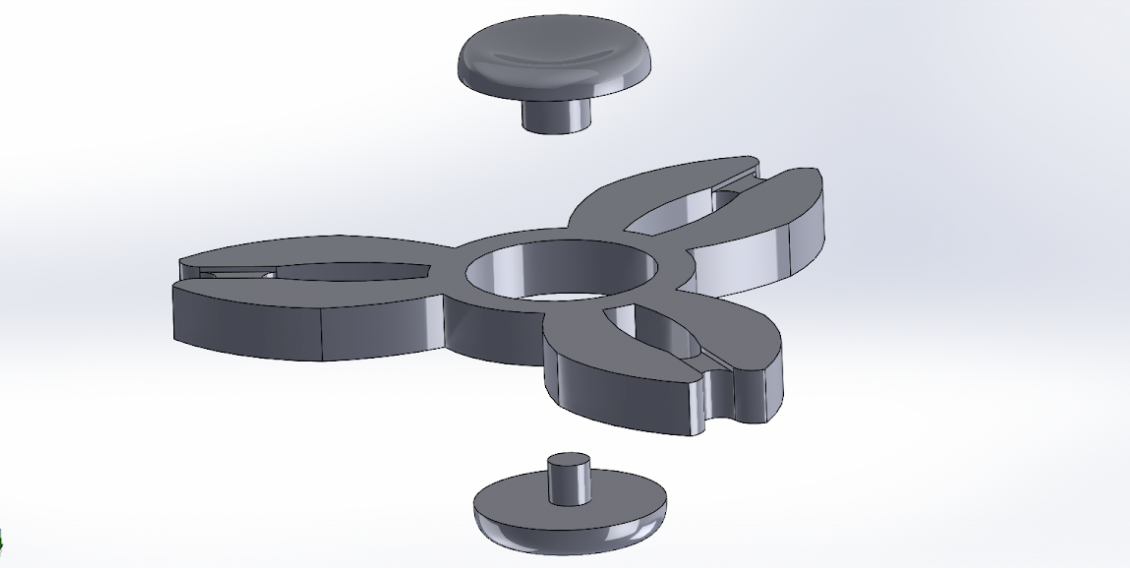

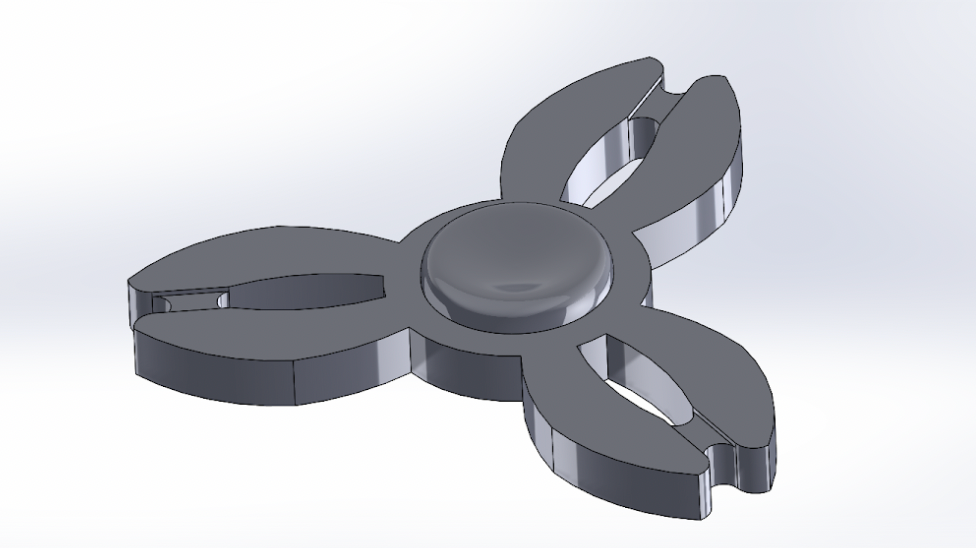

One of our projects was to make a fidget spinner of our own design. I used SolidWorks to design a functional laser cut fidget spinner based on a predetermined bearing size, as well as a 3D printed button to hold the spinner with the goal of mitigating friction.
SolidWorks Design Exercises
The following images are screenshots of CAD designs I made from given drawings with necessary dimensions

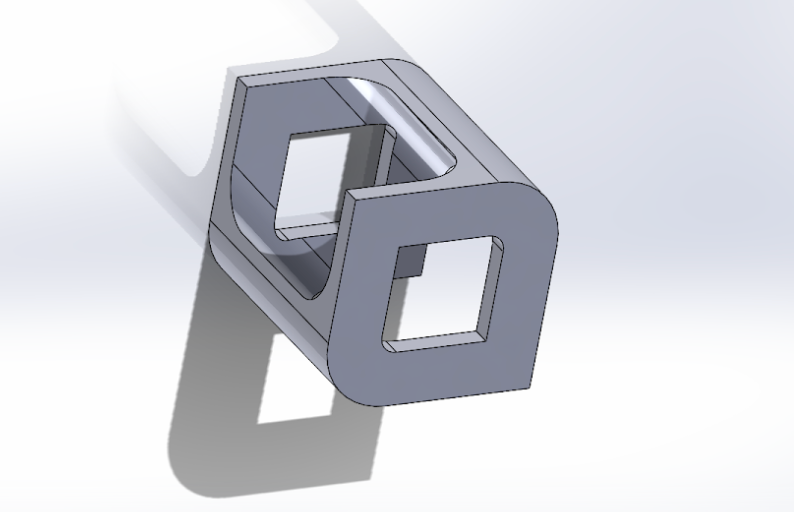

Cube with angled cutouts and filleted edges
